System / Family Warehouses

Revit families

What's in the warehouse

Equipment families built for commercial HVAC production. Connectors, parameters, and schedules are set up before you place them.

Every family is custom-built from the ground up. Lightweight, clean, and designed to be adjusted without breaking. They are laid out like an artist's palette: everything visible, everything accessible, nothing buried.

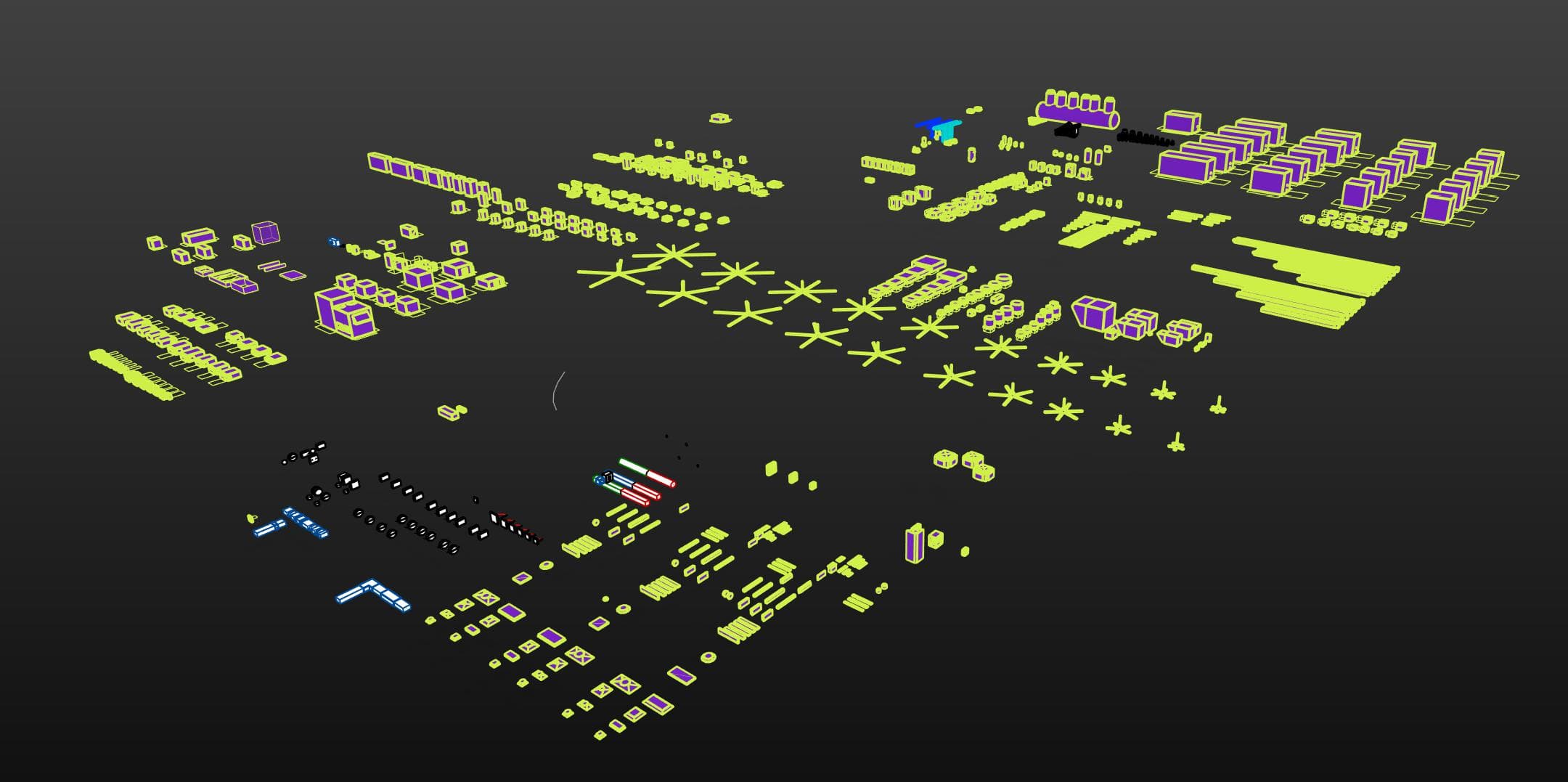

Aerial 3D view of the entire mechanical warehouse, with hundreds of families laid out flat and clustered by type: rows of large equipment blocks on their own pads, banks of four-way ceiling diffusers seen from above, long parallel runs of duct and pipe, and dense grids of smaller fittings.

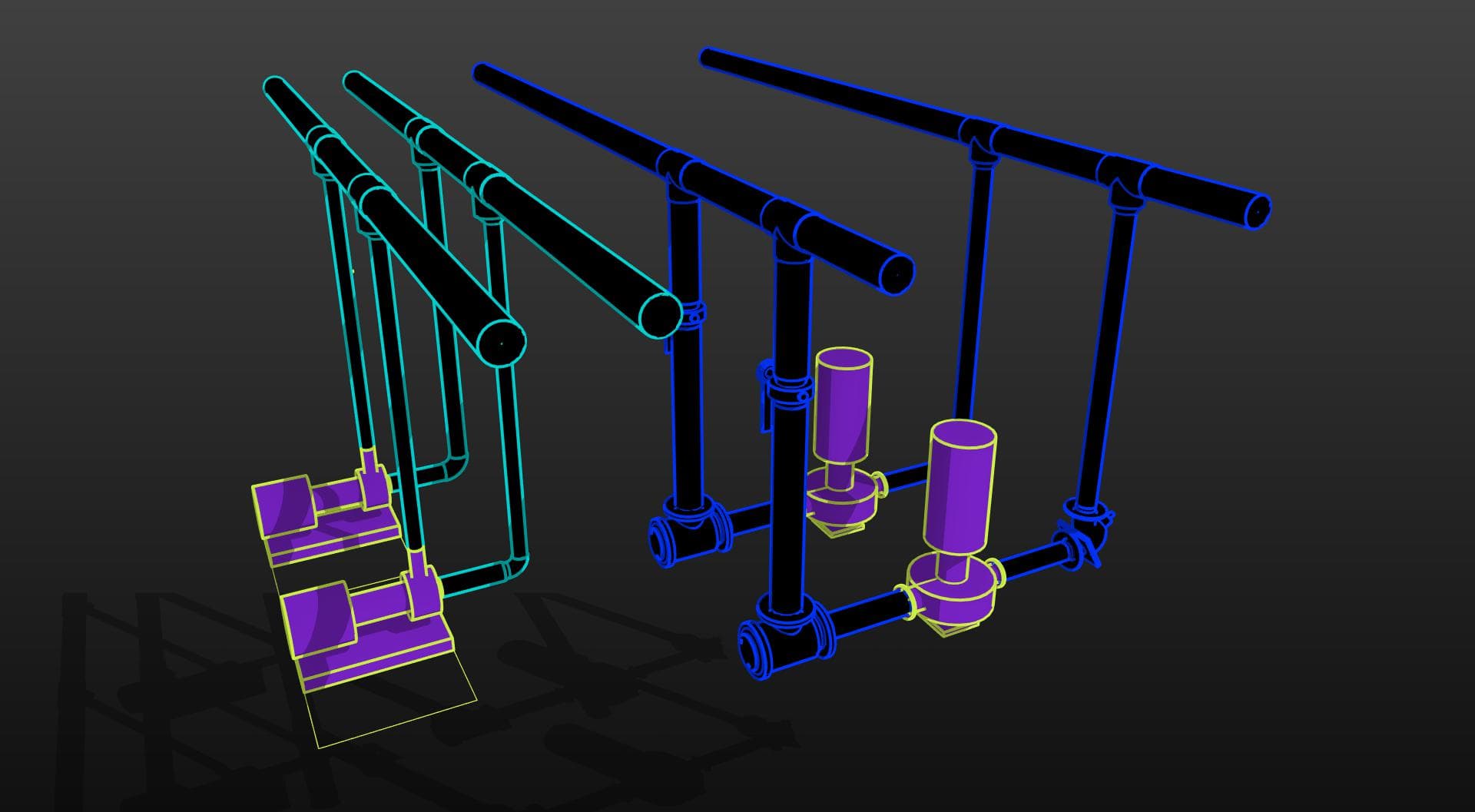

3D view of two base-mounted pumps and two vertical in-line pumps, each connected to headers that rise into larger mains, with isolation valves modeled at every connection.
3D view of dozens of small air terminals arranged in rows, each on its own pad, with five larger units around them: three across the foreground, one flat and cabinet-shaped, one a two-tier box, and one a cylinder with a round opening in its top, plus two more set further back.

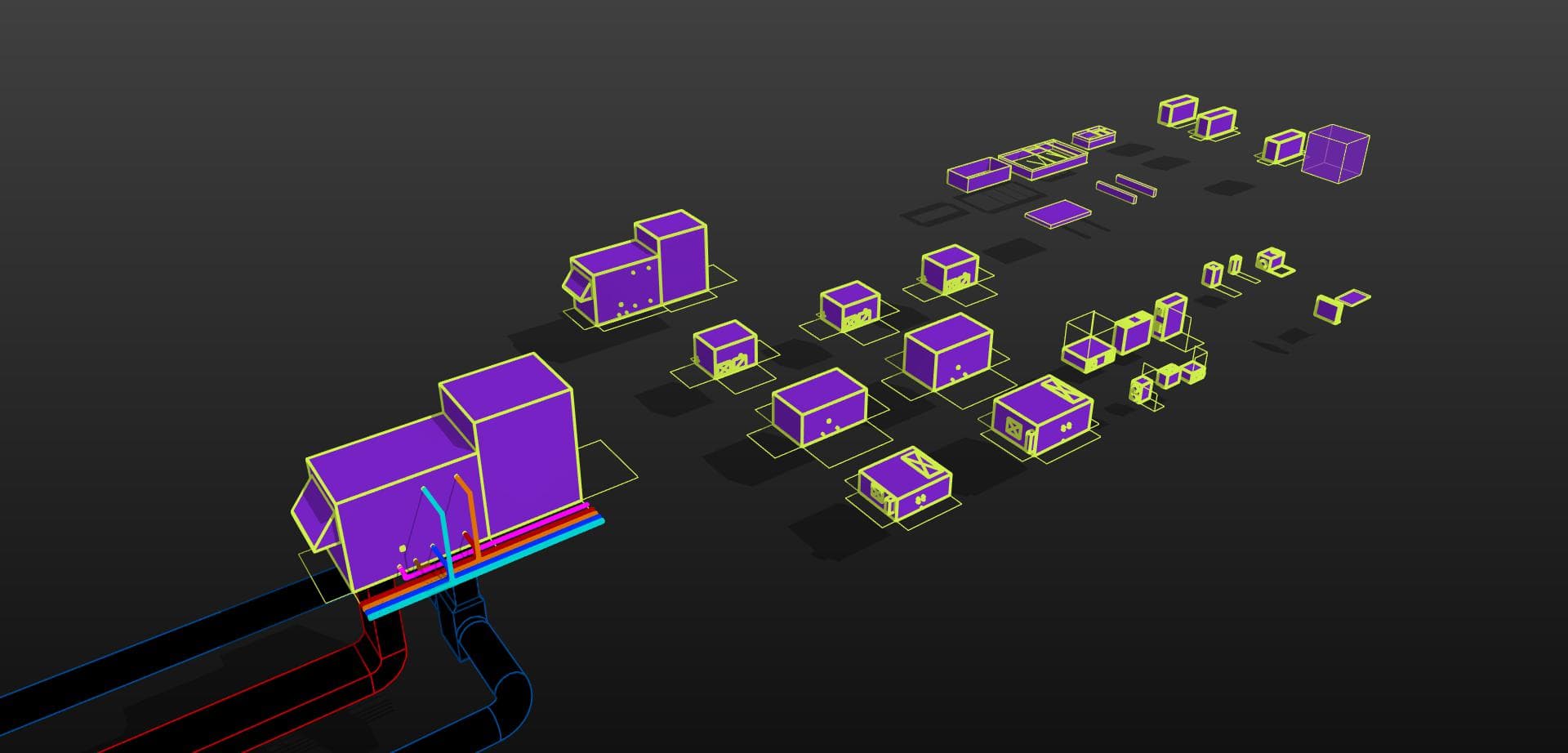

3D view of one large two-part equipment block in the foreground, with cyan, orange, magenta and blue connector stubs dropping out of its side onto colour-coded mains that run off past the edge of the frame, and dozens of smaller equipment blocks on pads receding diagonally behind it.

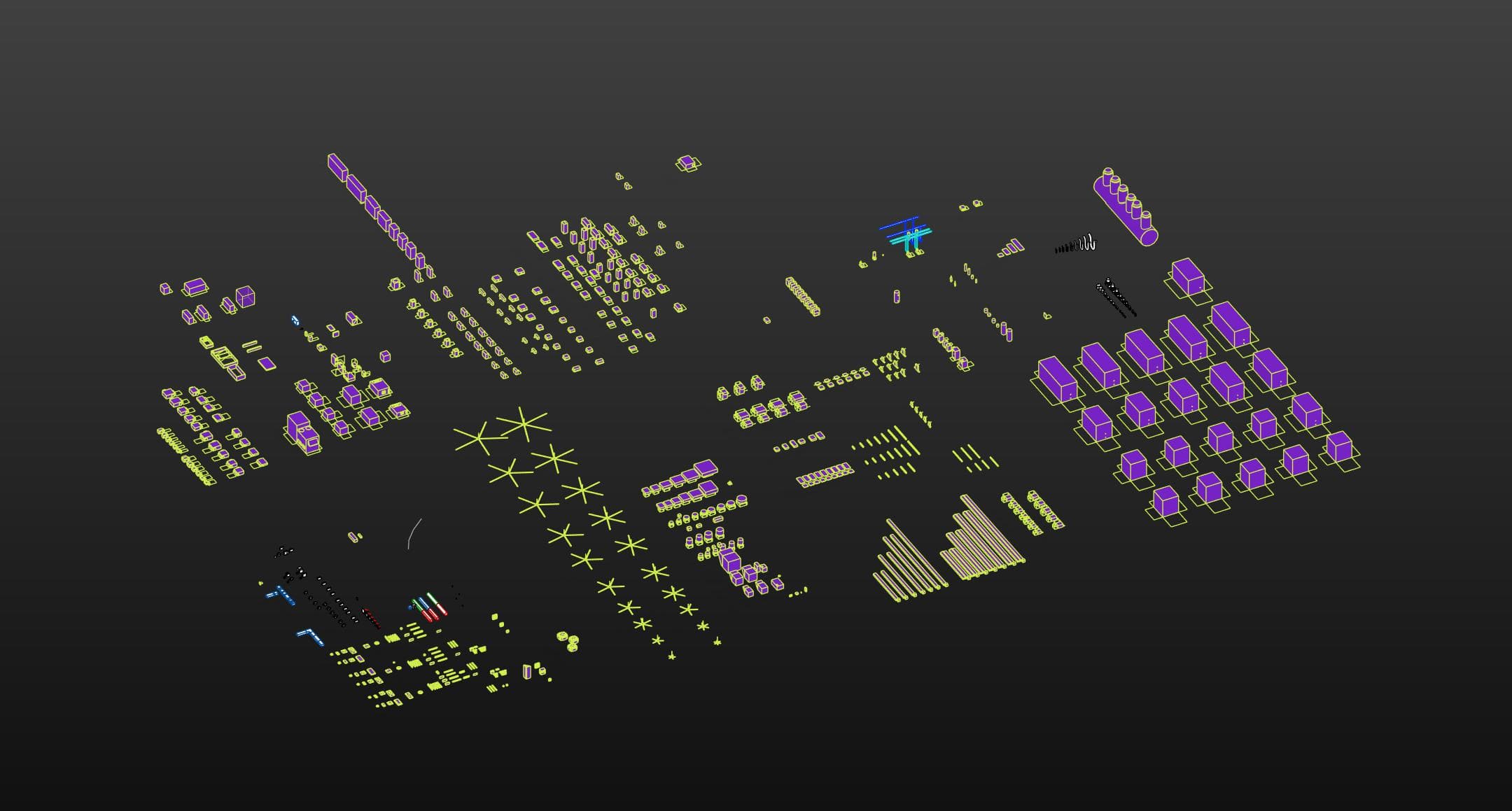

Second aerial 3D view of the mechanical warehouse from a different angle, showing a grid of condensing units, arrays of fans and terminal units, diffusers, and long runs of pipe grouped by type.

131 families · 459 types across 6 categories

Hydronic Equipment

31 families · 104 types

Pumps, chillers, boilers, and hydronic components with system connector parameters.

Major Air Handling Equipment

18 families · 63 types

Full-sized AHUs, rooftop units, and air handlers with accurate footprints and duct connector geometry for coordinated MEP drawings.

Split System Equipment

22 families · 78 types

Condensing units, fan coils, and mini-split components for residential and light commercial work. Lightweight and schedule-ready.

VAV & Fan Powered Boxes

14 families · 56 types

Single-duct VAV, series fan-powered, and parallel fan-powered terminal units.

Heating Equipment

27 families · 91 types

Unit heaters, cabinet heaters, fin-tube radiation, and electric panels at realistic dimensions with hydronic and electric connectors.

Exhaust Fans & Relief Equipment

19 families · 67 types

Ceiling and wall exhaust fans, relief dampers, louvers, and energy recovery ventilators. Lightweight and schedule-friendly.

Browse every family

Search and filter the full published catalog.

348 families
